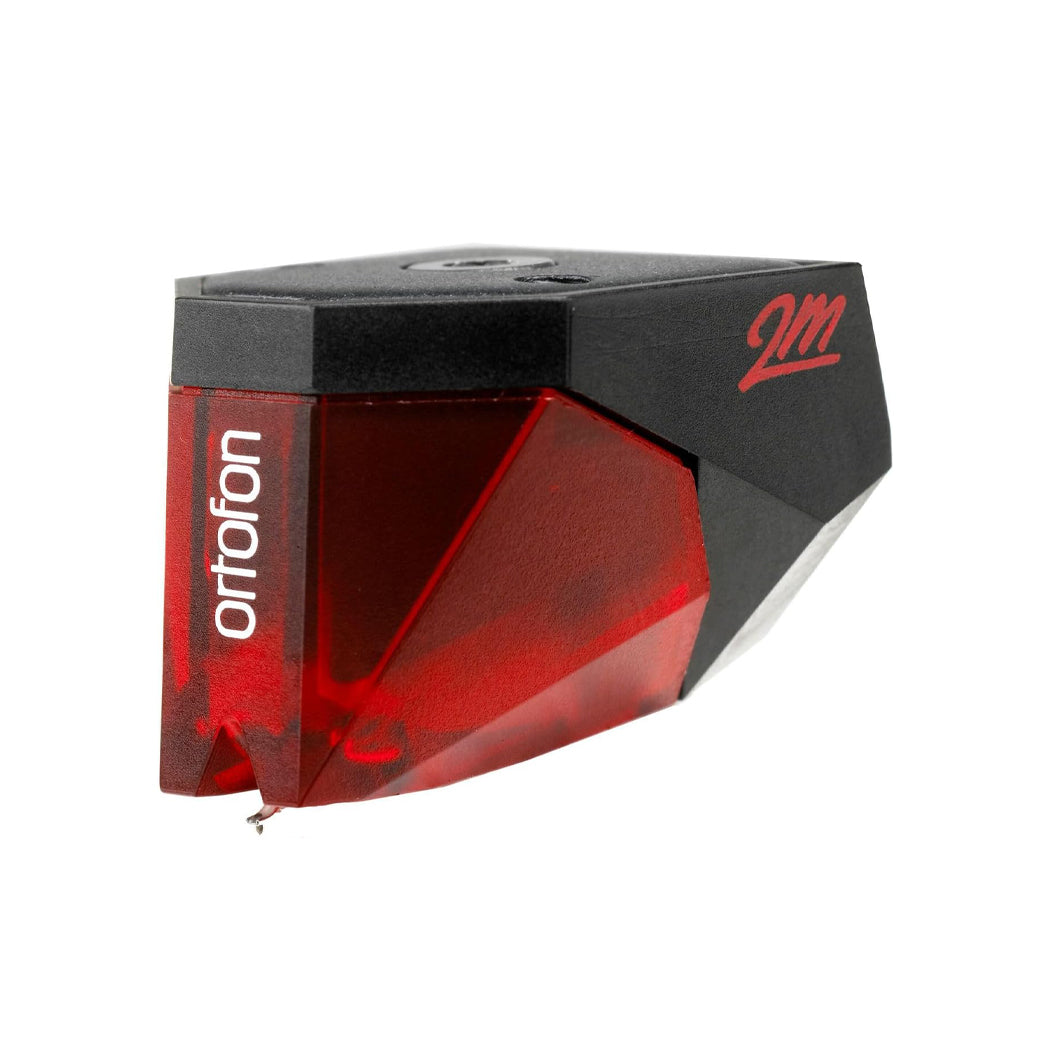

Ortofon 2M Red Cartridge

2M Red - Step into the music

With the 2M Red, you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry. The 2M Red delivers an open, dynamic sound with a slight touch of warmth.

Features

The 2M Red features Ortofon’s very own invention: the split pole pins with a copper wire that gives you a sound reproduction so precise only your heart dares skip a beat.

Output

The engine provides an increased output of 5.5 mV, an optimized sound reproduction, and a high level of sonic accuracy. With the 2M Red, you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry.

Compatibility

Created to facilitate simple installation of the cartridge and to ensure compatibility with the dimensions and weights of today's most popular turntables, the 2M Series offers four distinct product versions:



The 2M is for most common turntables on the market, the 2M Premounted for customers who wish direct and easy mounting and replacement on their S-shaped tonearm, the 2M Verso for bottom mount headshells, and the 2MR, which is designed with cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.

Channel balance at 1 kHz: 1.5 dB
Output voltage at 1 kHz, 5cm/sec: 5.5 mV
Channel separation at 1 kHz: 22 dB
Channel separation at 15 kHz: 15 dB
Frequency response 20 Hz - 20 kHz: + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force: 70 µm
Compliance, dynamic, lateral: 20 µm/mN
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 1.6-2.0 g (16-20 mN)
Tracking force, recommended: 1.8 g (18 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 1.3 kOhm
Cartridge colour: Black/Red
Cartridge weight: 7.2
Premounted cartridge weight: 16.7 g
Reccomended load resistance: 47 kOhm
Internal inductance: 700 mH
Recommended load capacitance: 150-300 pF

2M Series styli interchangeability:

The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:

- 2M Red, 2M Blue and 2M Silver

- 2M Bronze, 2M Black and 2m Black LVB 250

• 2M Mono and 2M 78
