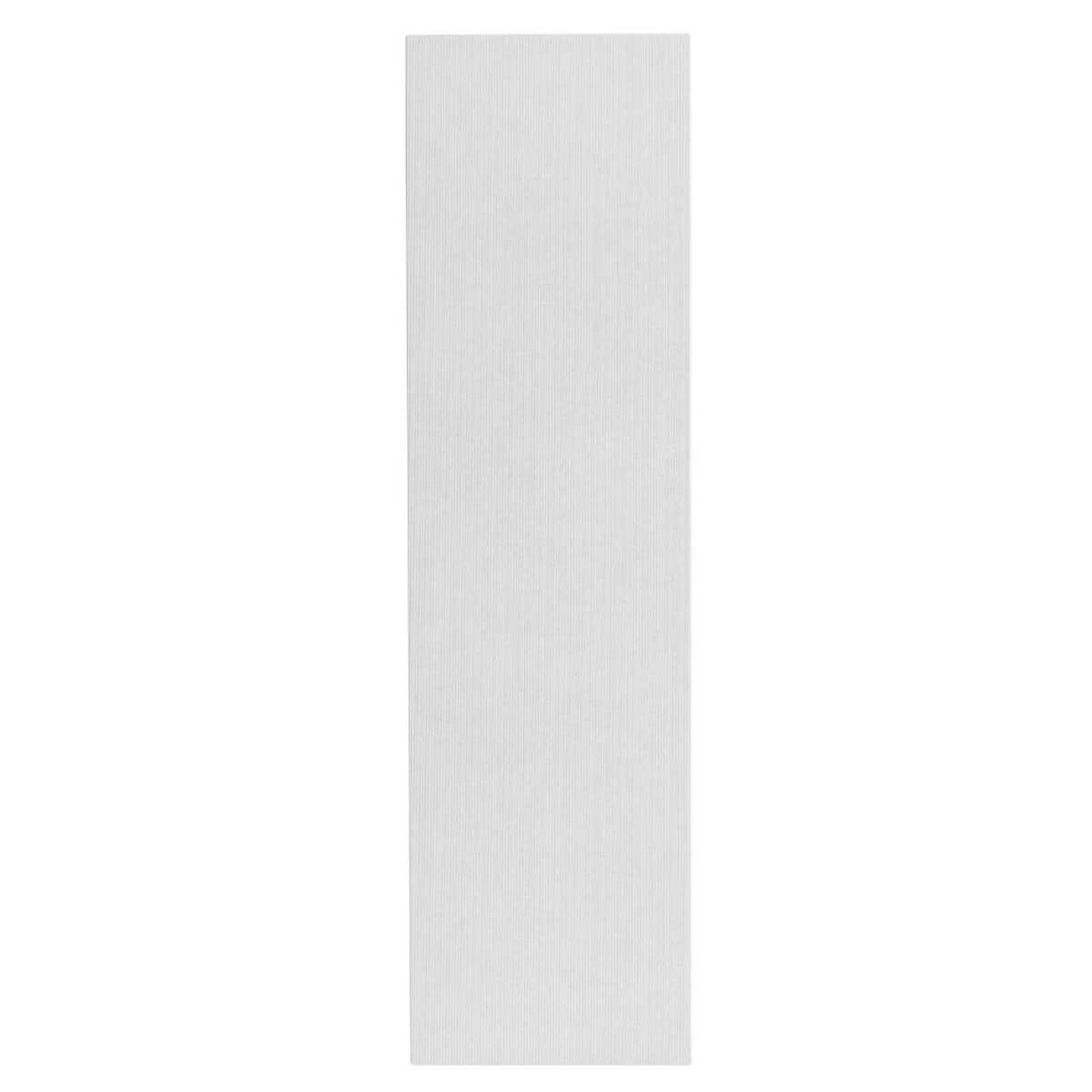

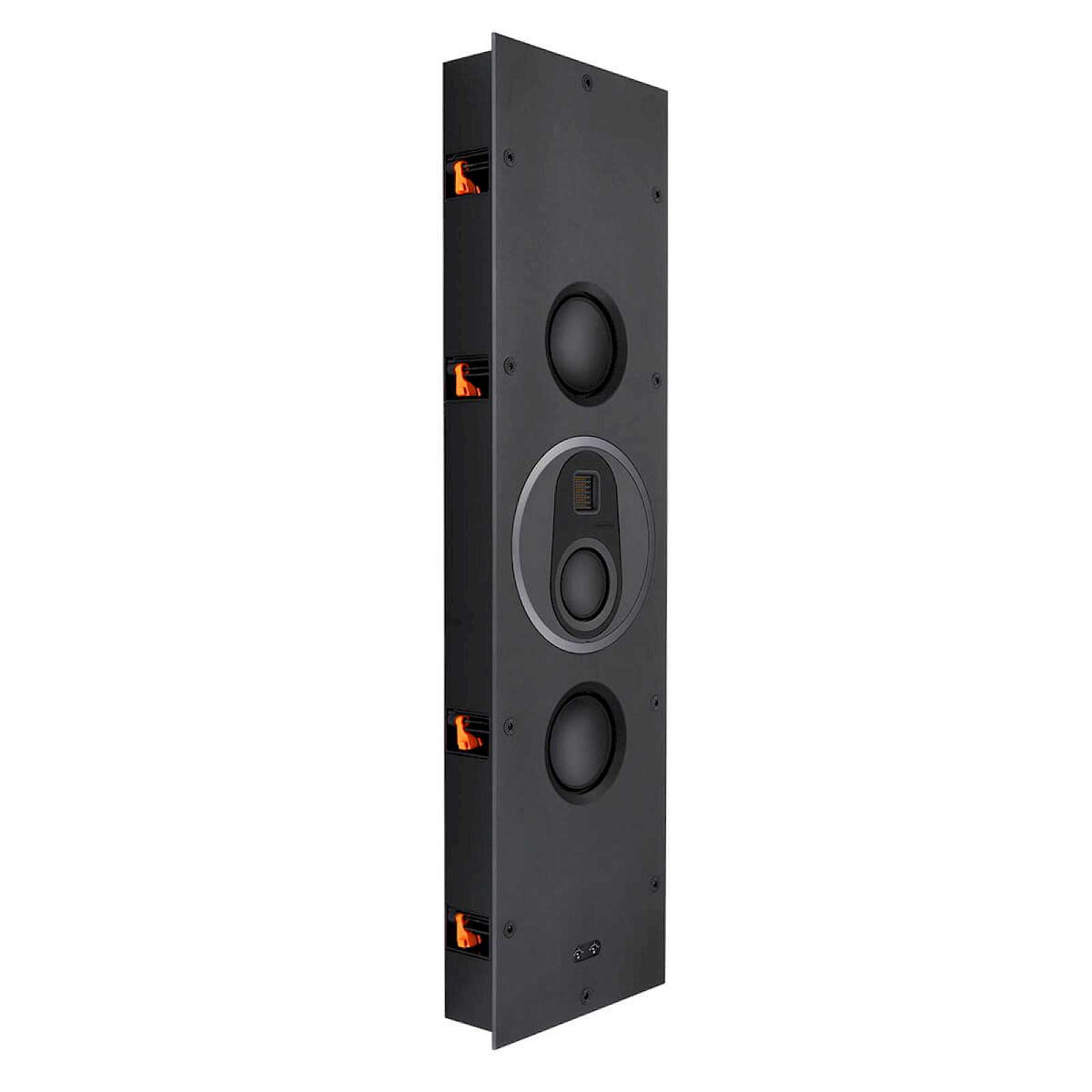

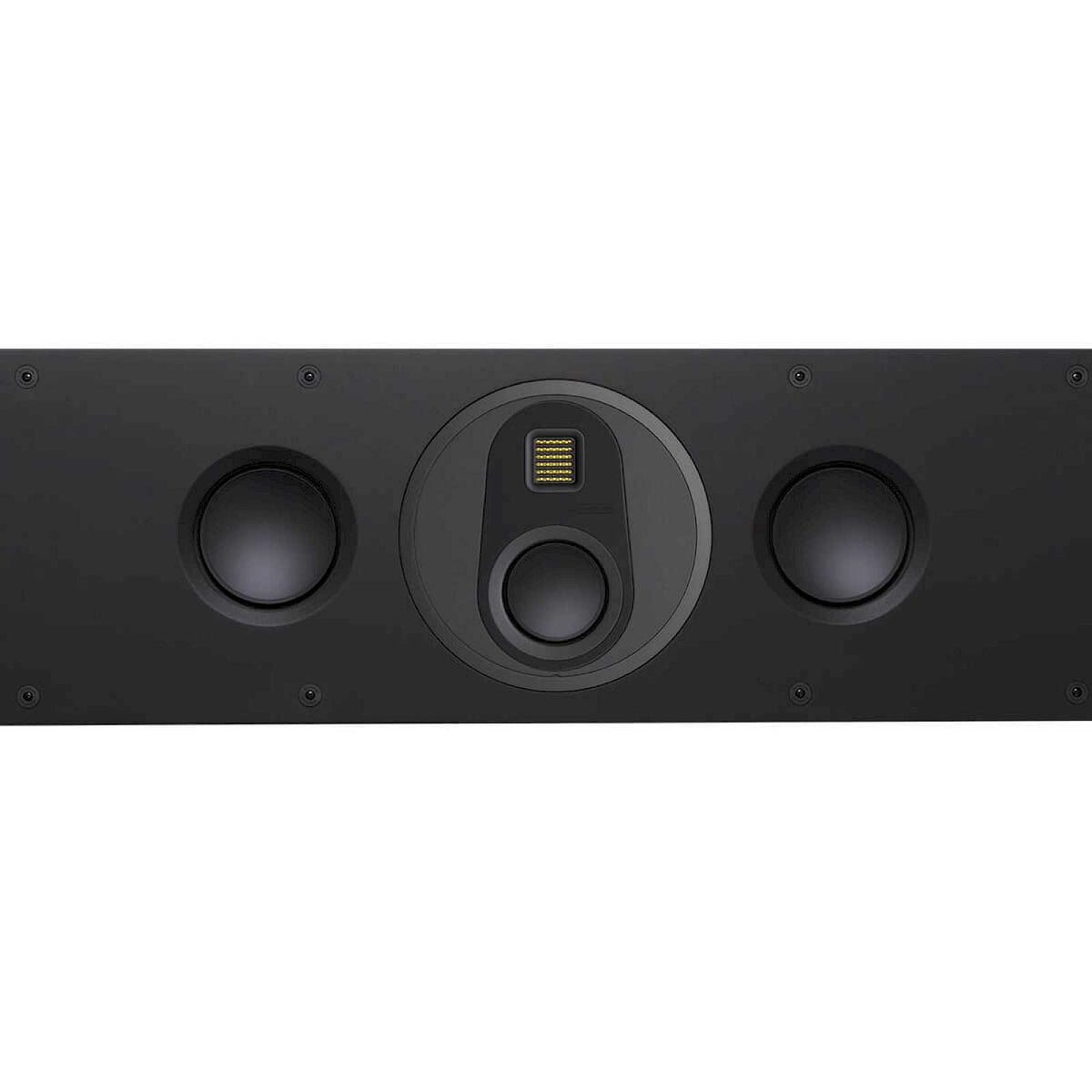

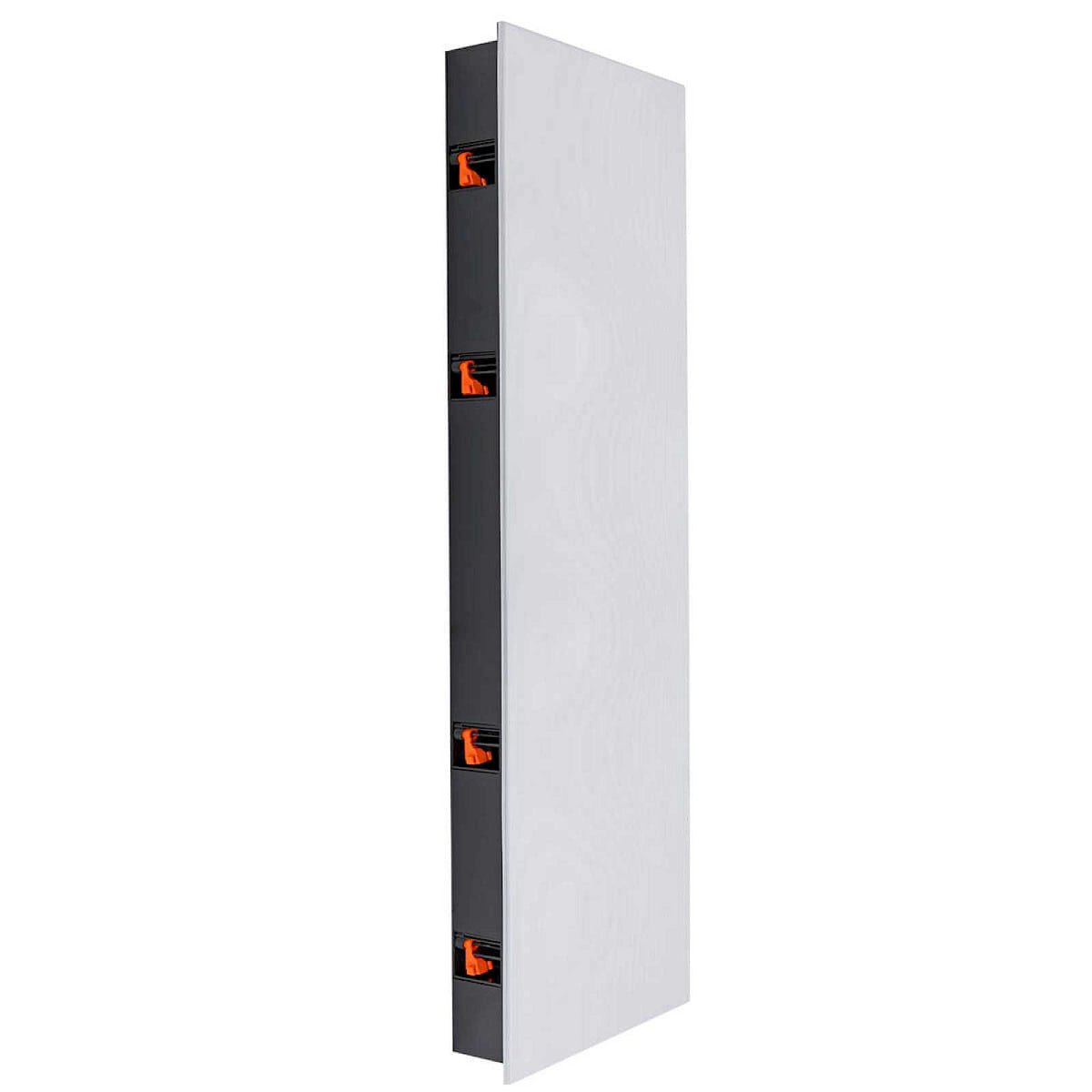

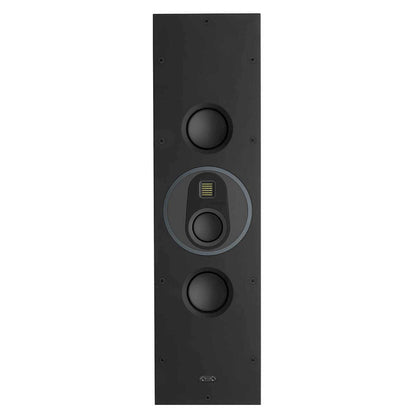

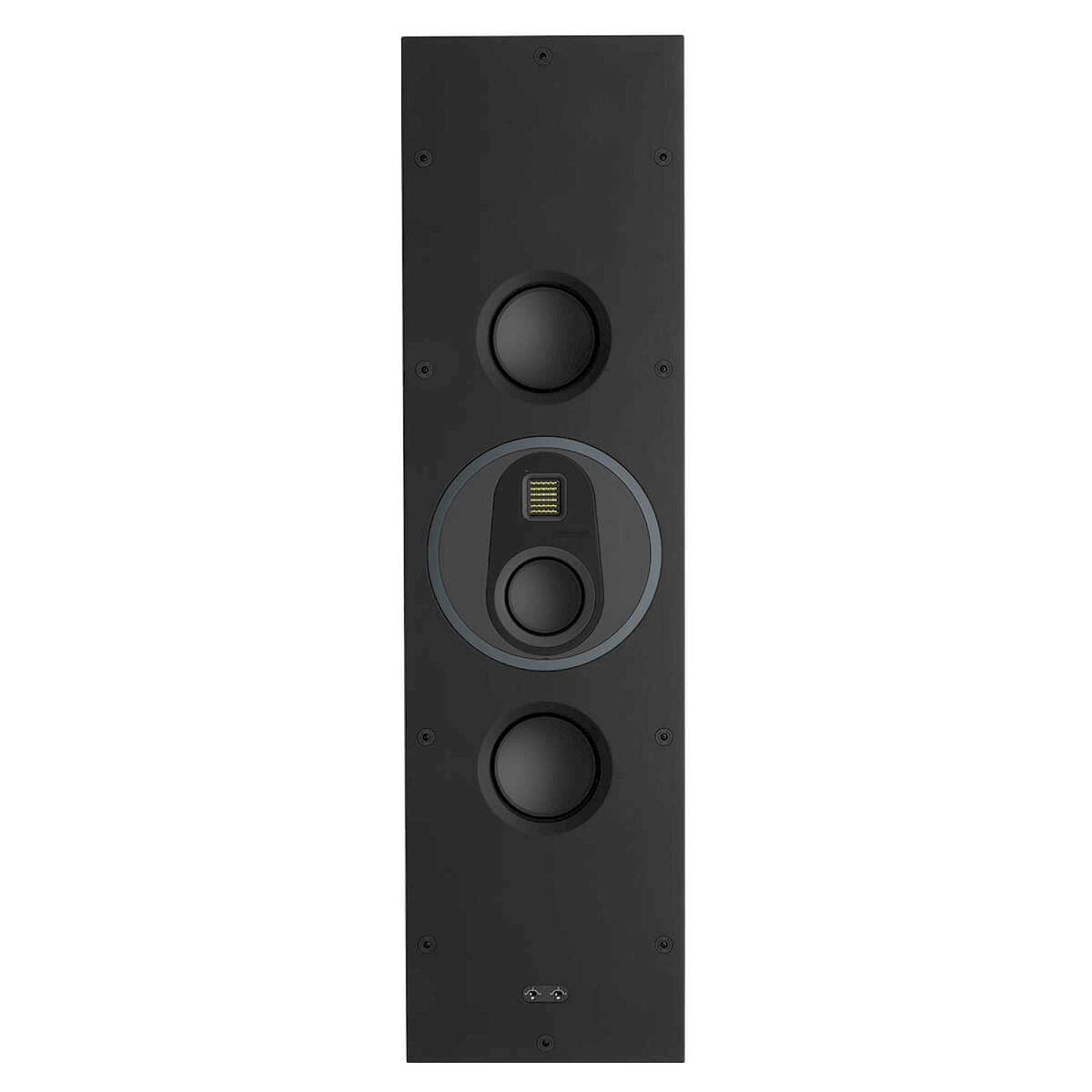

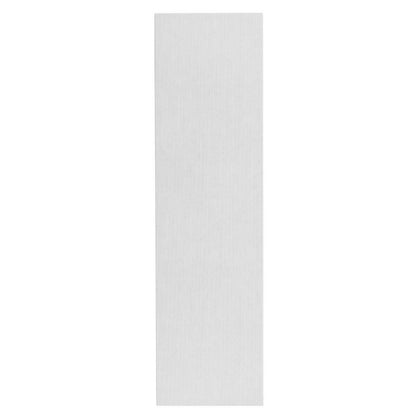

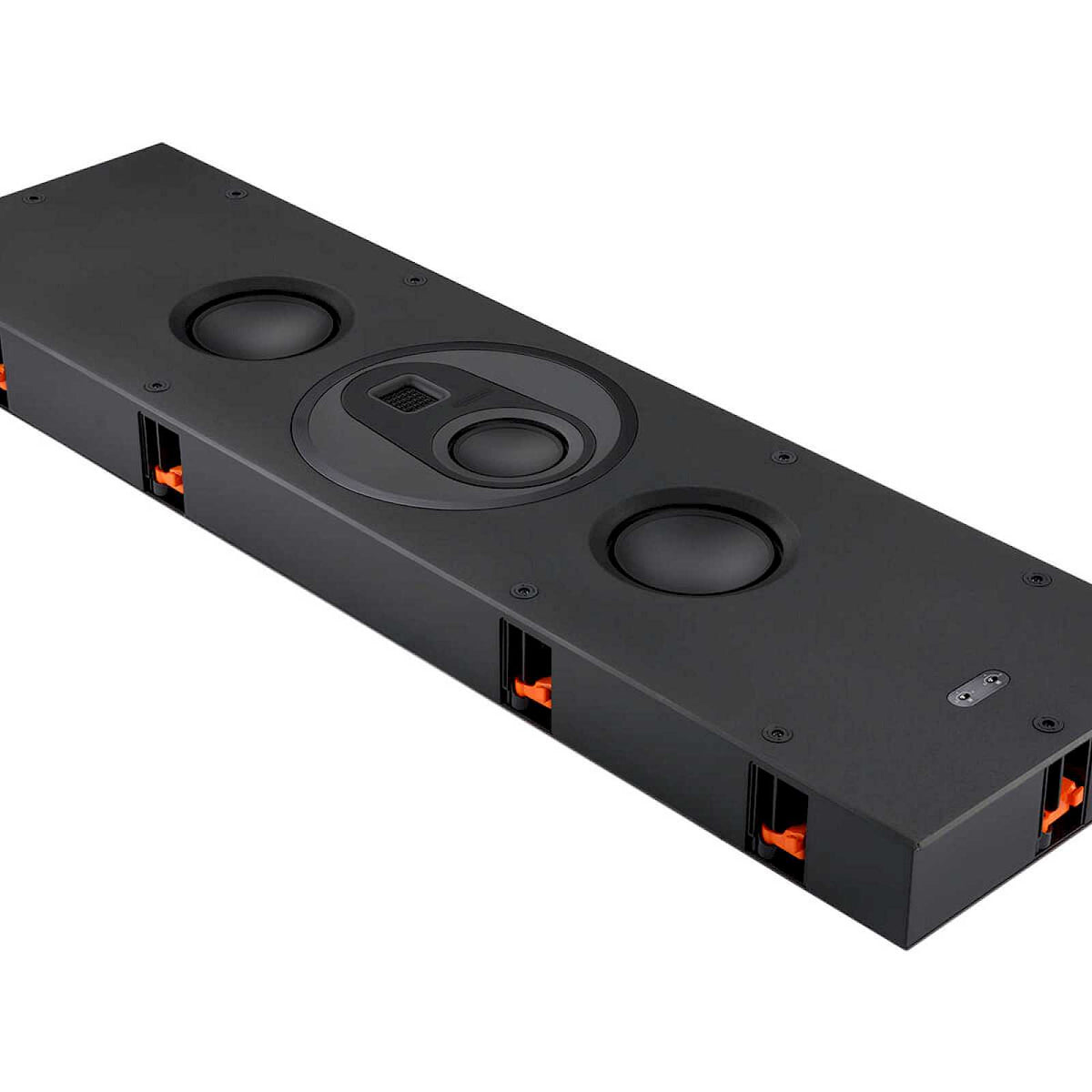

The Platinum In-Wall 3G is Monitor Audio's flagship architectural in-wall speaker, a three-way sealed design with an MPD III tweeter, a 4-inch RDT III mid-range driver and twin 6-inch RDT III bass drivers in a rigid MDF cabinet. It can be installed vertically or horizontally, so it can be used on any channel of a home theatre or two-channel stereo system. Sold individually.
System Format: 3-Way
Frequency Response, Free-Field (-6dB): 41 Hz – >60 kHz
Frequency Response, In-Room (-6dB): 27 Hz – >60 kHz
Sensitivity (2.83 Vrms @ 1m, Free-Field): 88 dB
Nominal Impedance: 4 Ohms
Minimum Impedance: 4.1 Ohms @ 1.6 kHz
Continuous Power Handling (RMS into 4 Ohms, Pink Noise with 6dB Crest Factor): 300 W
Recommended Amplifier Power (RMS into 4 Ohm, Music Signal): 150 – 600 W
Bass Alignment: Sealed
Crossover Frequency: LF/MF: 825 Hz; MF/HF: 3 kHz

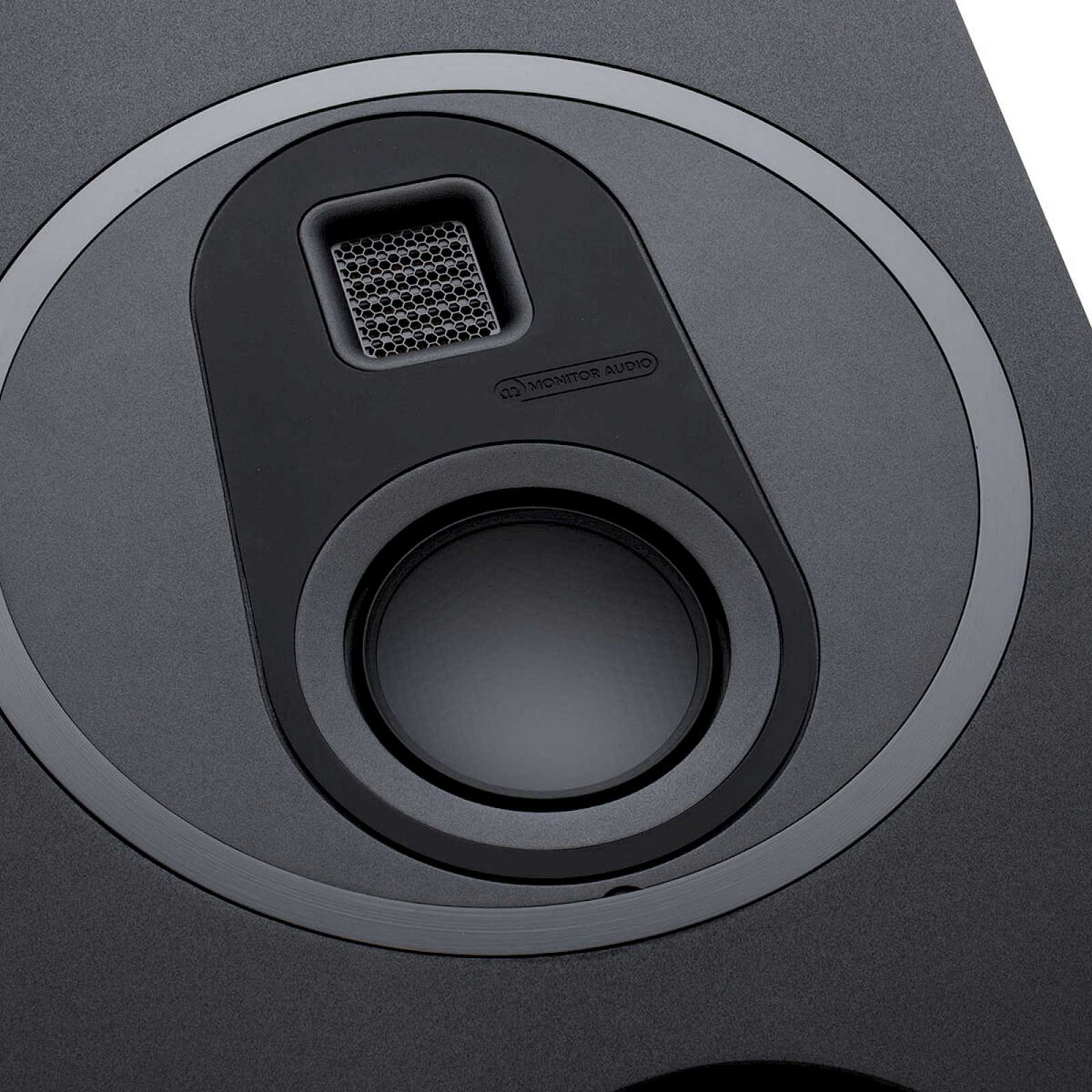

Drive Unit Complement: 2 x 6” RDT III bass driver, 1 x 4” RDT III mid-range driver, 1 x MPD III tweeter
External Dimensions (Including Grille and Terminals (H x W x D)): 1207 x 332 x 105.5 mm (47 9/16 x 13 1/16 x 4 4/16 ”)
Cut-Out Dimensions: 1175 x 300 x 97.5 mm (46 1/4 x 11 13/16 x 3 13/16 “)
