Monitor Audio Platinum In-Ceiling II Speaker (Each)

Special order: please contact us for lead times.

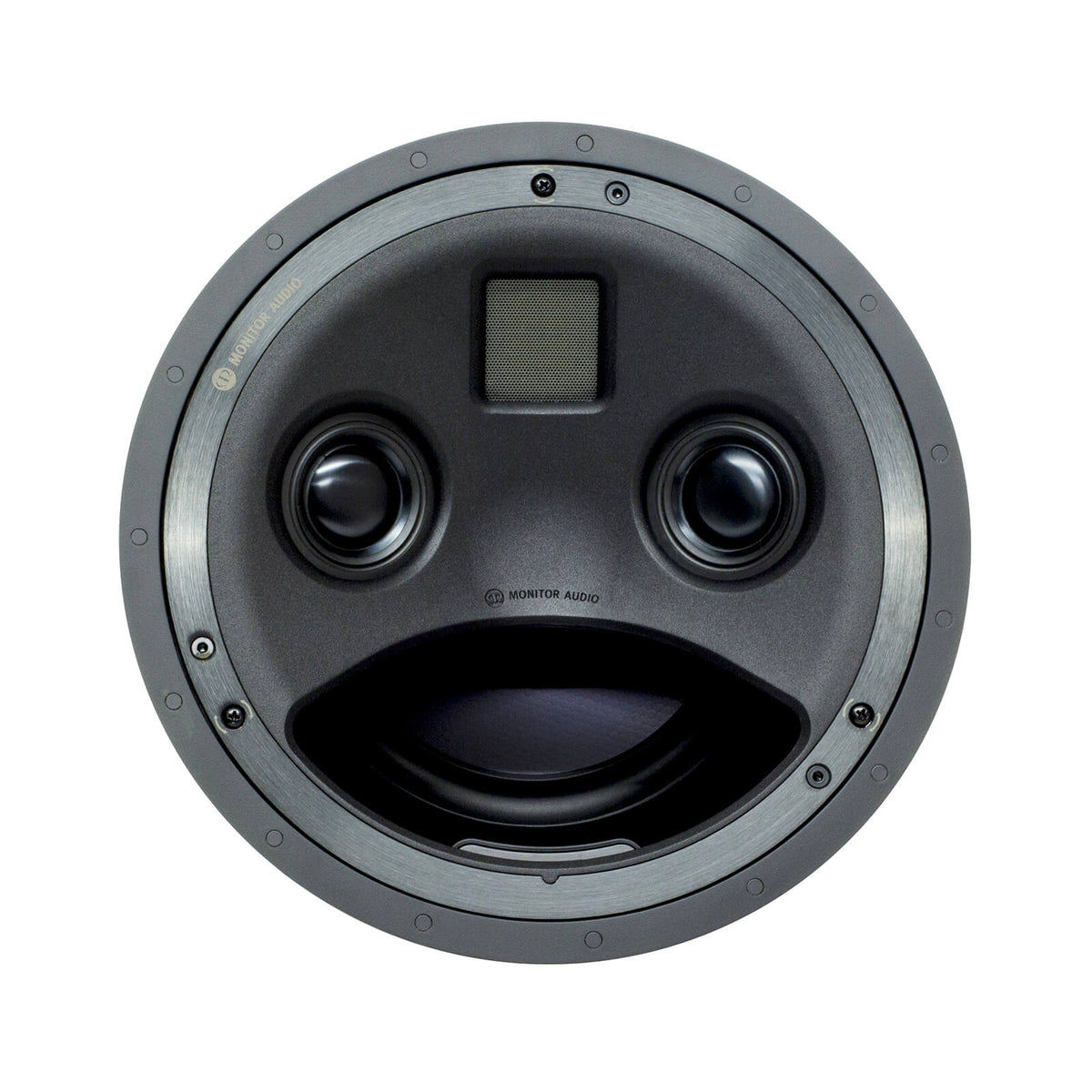

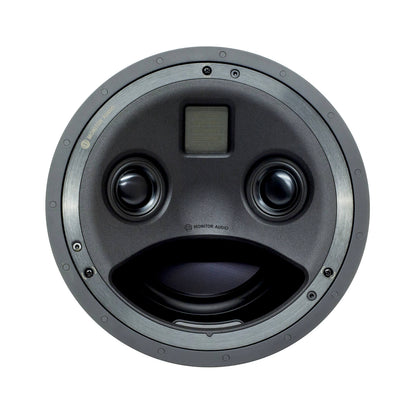

The Platinum PLIC II is a three-way in-ceiling speaker in Monitor Audio's Platinum II range, with an MPD high-frequency transducer and two 2-inch C-CAM mid-range drivers on a die-cast aluminium baffle, plus an 8-inch long-throw RDT II bass driver. It fits with Monitor Audio's Tri-Grip fixing system and has a low-profile, paintable magnetic grille, with a square grille available at extra cost. It is compatible with the PLIC-BOX II back box and the CB10 pre-construction bracket. Sold individually.

• System Format: 3 Way – 4 Driver
• Frequency Response (-6 dB): 45 Hz – 60 kHz
• Sensitivity (1W@1M): 90 dB
• Maximum SPL: 112 dBA
• Nominal Impedance: 4 ohms (3.1 ohms minimum @ 1.1 KHz)
• Power Handling (RMS): 150 W
• Recommended Amplifier Requirements: 50 – 150 W
• Recommended Enclosure: PLIC-BOX II or a bespoke sealed enclosure of 24 litres
• Mid / H.F Crossover Frequency: 5.3 KHz 3rd order (18 dB / Octave)
• Bass / Midrange Crossover Frequency (Hz): 380 Hz 4th Order (24 dB / Octave)
• Drive Unit Complement: 1 x 8" long-throw RDT II bass driver; 2 x 2" C-CAM mid-range drivers; 1 x MPD high-frequency transducer
• Adjustment Controls: HF level switch (+1 dB / 0 dB / -1 dB); MF level switch (+1 dB / 0 dB / -1 dB)
• Connection: High-end ‘Push’ type terminals
• Fixing Type: 3 position Tri-Grip dog fixings
• Overall Diameter - Grille On/Off: 309 mm (12 3/16 "); 296.25 mm (11 11/16 ")
• Overall Depth – Grille On/Off: 191.5 mm (7 1/2 "); 188 mm (7 3/8 ")
• Construction Material: Main chassis - Mineral Filled ABS (RoHS2 compliant); Baffle – Die cast Aluminium

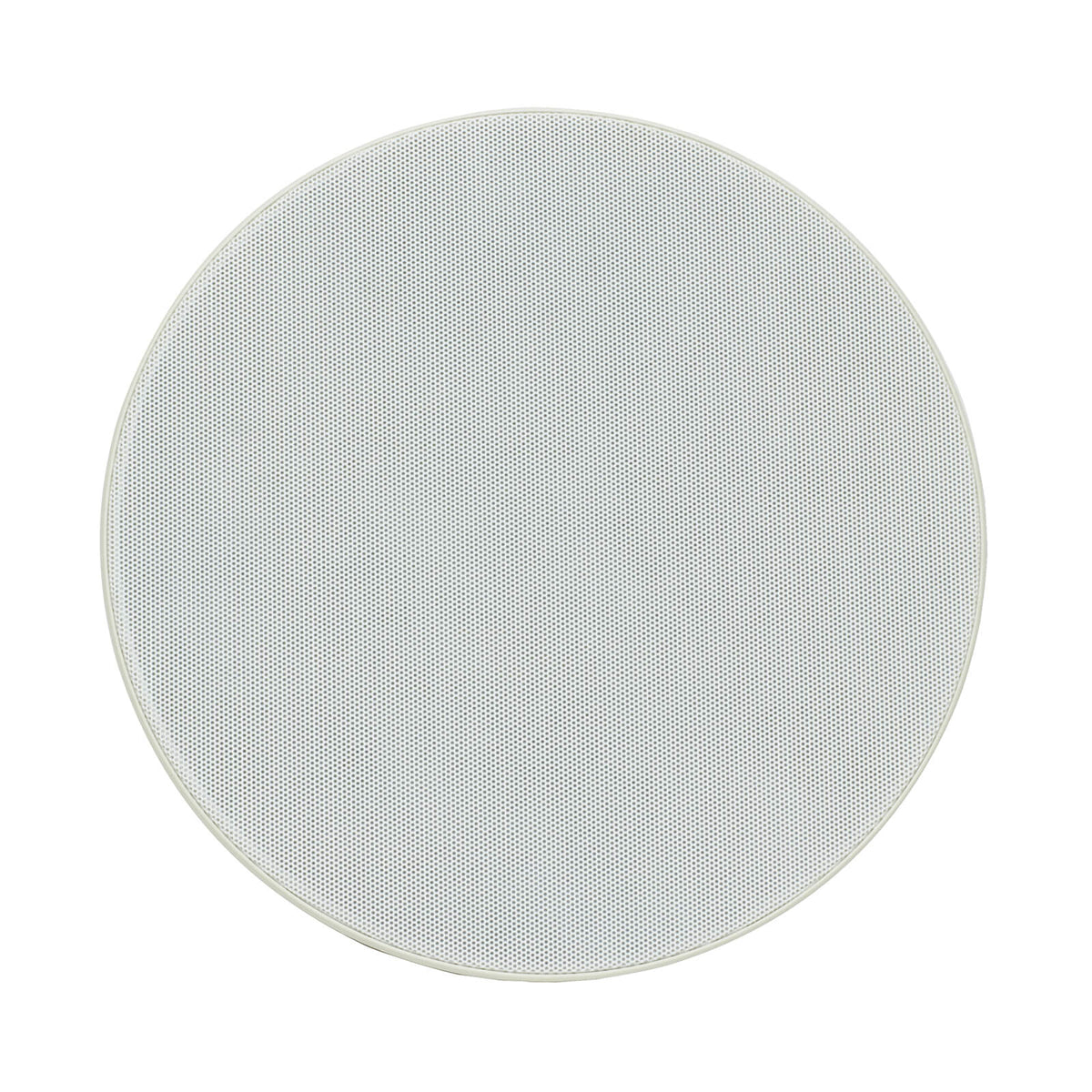

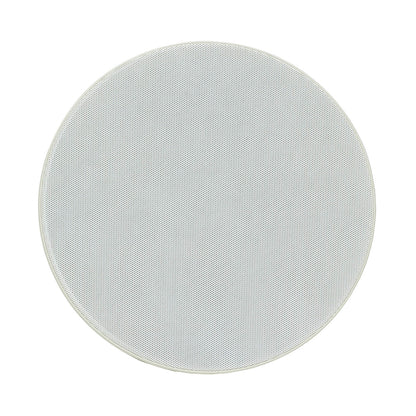

• Grille Type: Low profile trimless grille with magnetic fixings – Paintable (square grille available as a cost option)
• Optional Square Grille - Outer Dimensions: 309 x 309 mm (12 3/16 ")
• Cut-Out Hole Diameter: 273 mm (10 3/4 ")
• Mounting Depth: 185 mm (7 5/16 ")
• Weight (each): 5.22 kg (11 lb 8 oz)
• Pre-Construction Bracket: CB10 Pre-Construction Bracket (Light Brown)
• Back Box: PLIC-BOX II
• Sold as: Each
