Monitor Audio Anthra W15 15" Subwoofer (Each)

Special order: please contact us for lead times.

The Anthra W15 is the largest model in Monitor Audio's Anthra subwoofer series. It uses a 15” (38 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver powered by a 2,500 Watt Class-D amplifier, in an internally braced, sealed-box cabinet with magnetically attached cloth grilles.

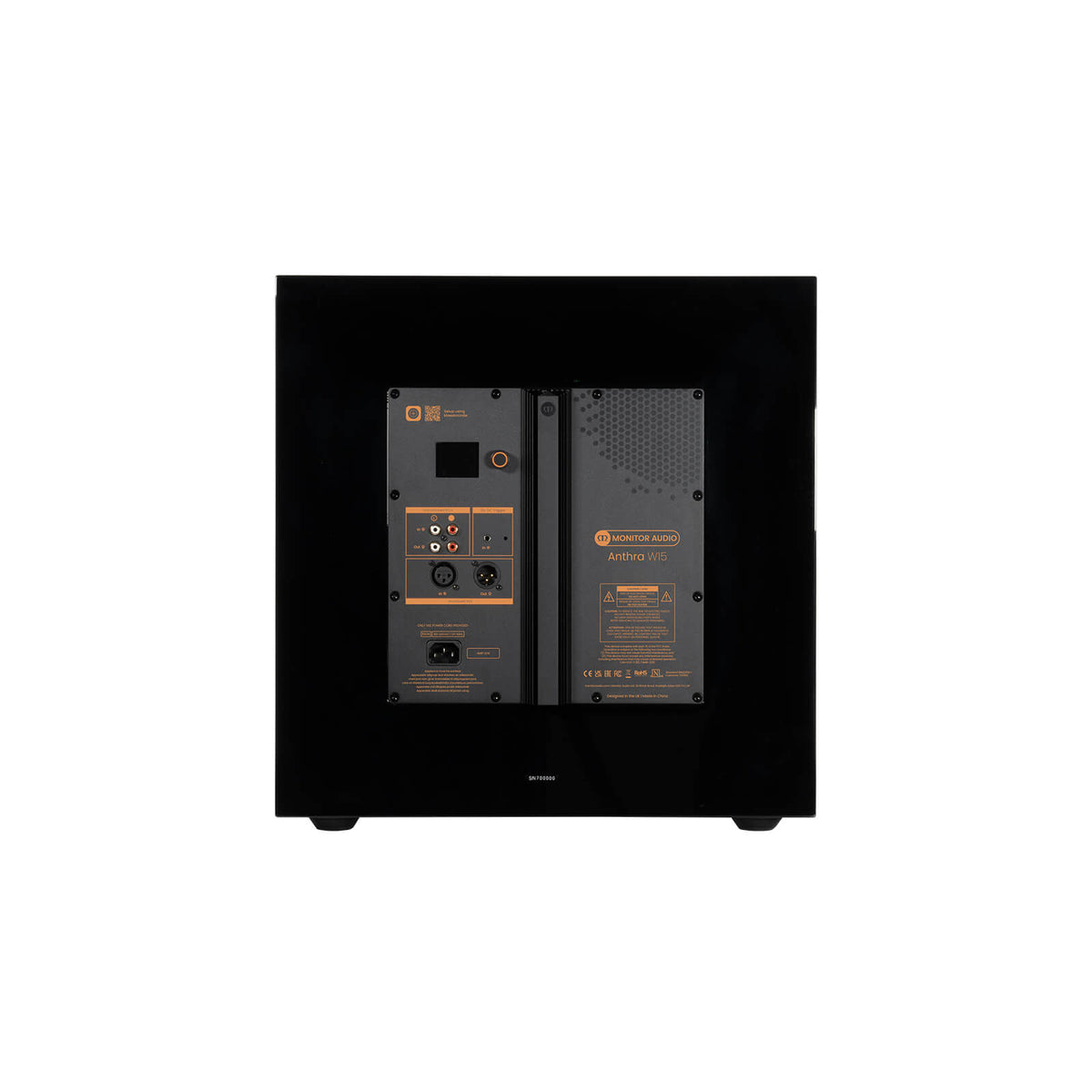

A full-colour LCD display and rotary dial on the back panel handle basic setup and EQ preset selection, while DSP configuration and multi-sub setup are available through the MaestroUnite app. The W15 can be used on its own or linked with up to three other Anthra subwoofers. Sold individually.

• System Format: Active - Sealed Cabinet
• Drive Unit Complement: 1x 15" (381 mm) High Linear-Excursion Triple Suspension Driver
• Amplifier Classification: High-Efficiency Class-D
• Lower Frequency Limit: -6dB @16Hz
• Upper Frequency Limit: (LPF Off) -6dB @400Hz
• Driver Excursion (pk-pk): 50 mm
• DSP: 28 Bit 50 MIPS Configurable through MaestroUnite
• Analogue Digital Conversion: Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals
• Amplifier Output Power, 240Vac: Instantaneous: 2500 W; Continuous short-term: 1400 W
• Amplifier Output Power, 120Vac: Instantaneous: 2500 W; Continuous short-term: 1400 W
• LED UI Control: Brightness, On-Off
• Phase Control: 0-360 Degrees measured at LPF Crossover
• Low Pass Filter: 20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct
• Custom EQ: Configurable through MaestroUnite;3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)
• Volume Level: Wide adjustable input gain to allow maximum output from a wide range of input signals
• Inputs: Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE); Mono/LFE Balanced XLR
• Outputs: Stereo unbalanced outputs with unbuffered throughput from RCA Inputs; Mono/LFE Balanced XLR outputs with unbuffered throughput from XLR Input
• Mains Input Voltage: Universal Mains, 85-265VAC
• External Dimensions (without feet) (HxWxD): 439 x 439 x 439 mm
• Power Consumption: 550 W
• Cabinet Construction: Braced 25 mm thick MDF with 36 mm front baffle

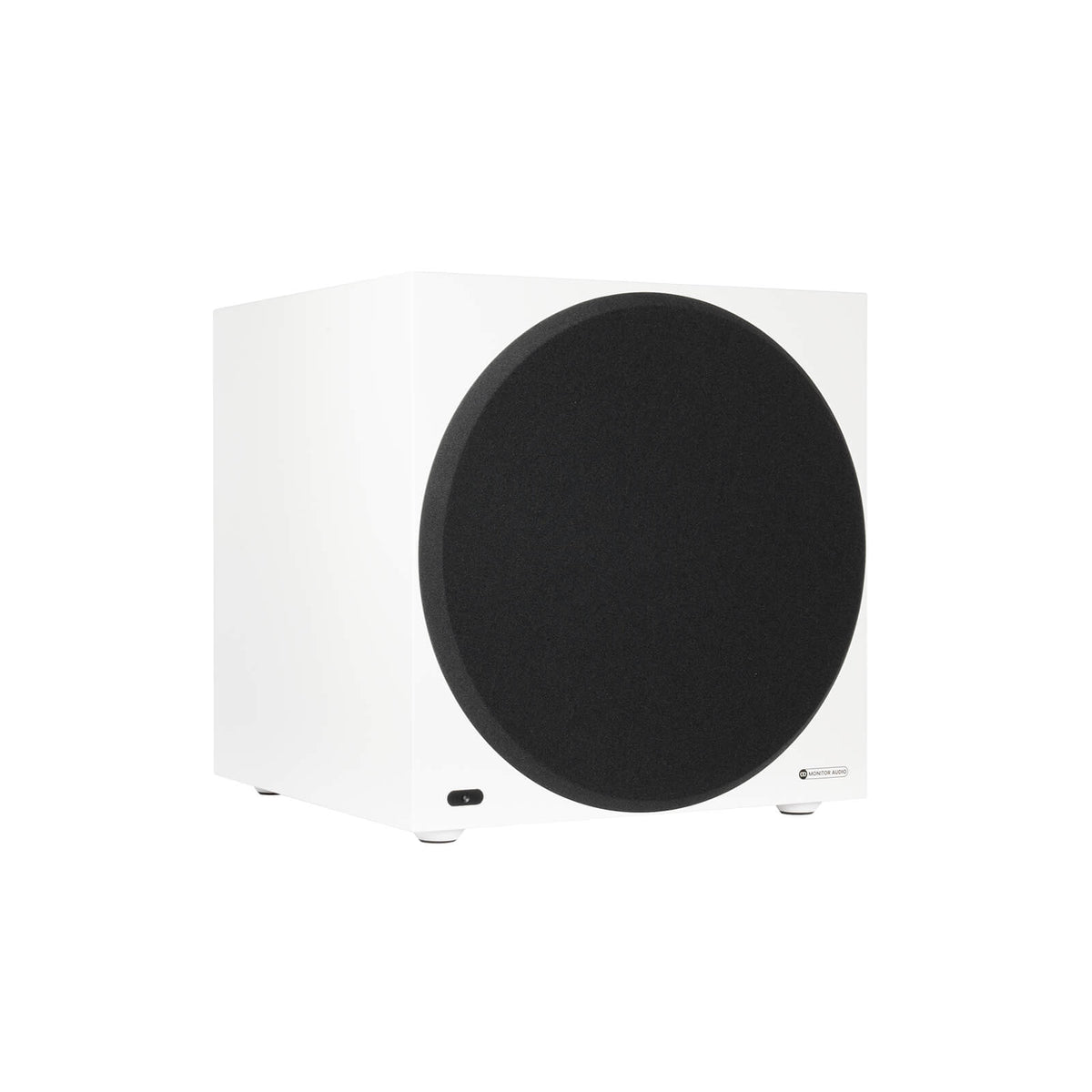

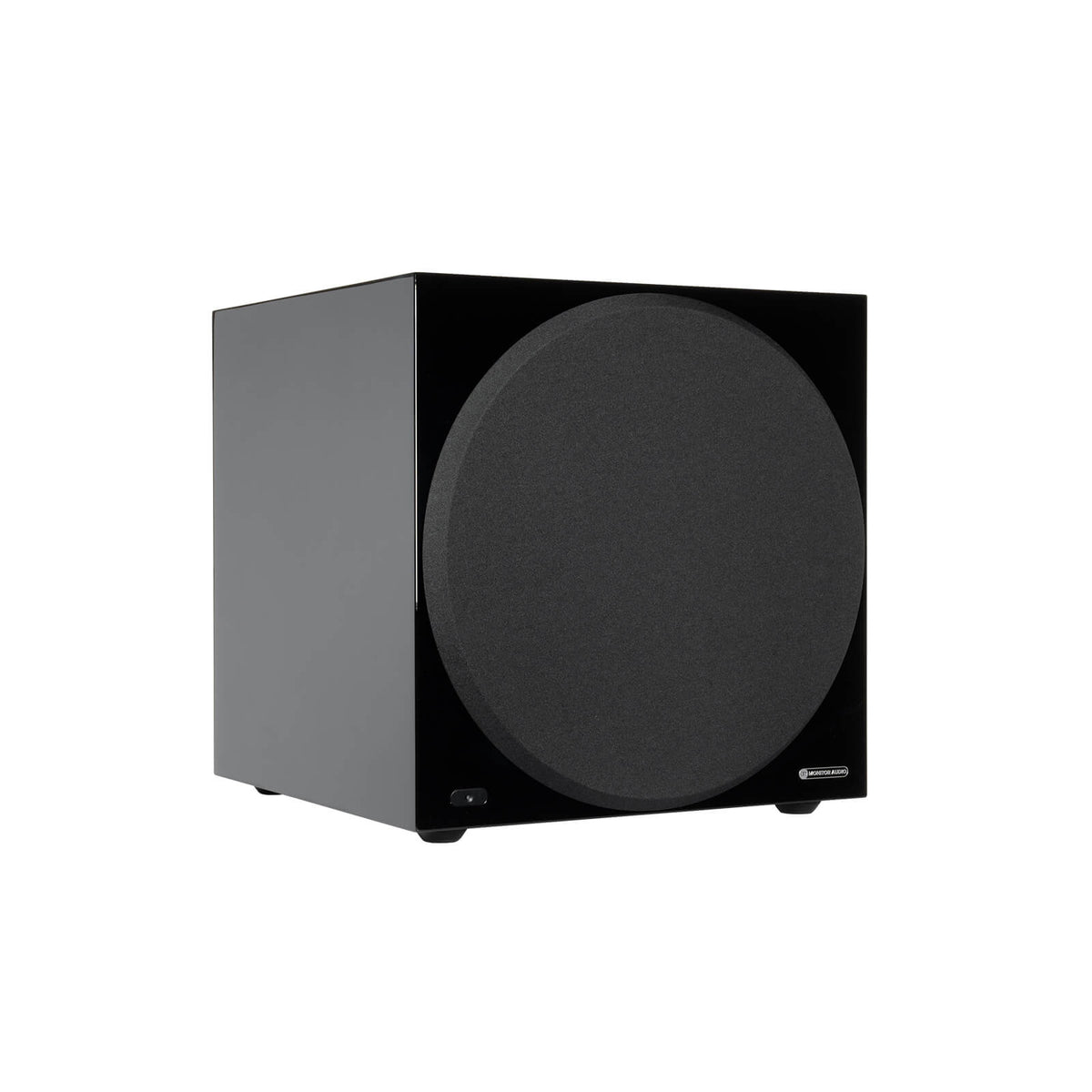

• Grille: Cloth covered magnetically attached Grilles
• Weight: 35.41 kg (78 lb 1 oz)
• Sold as: Each
• Finishes: High Gloss Black, Satin White
