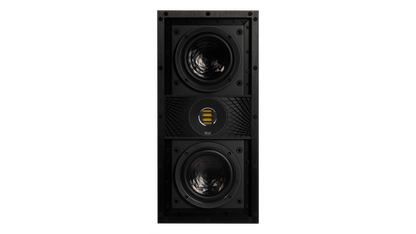

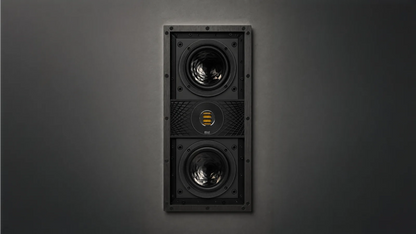

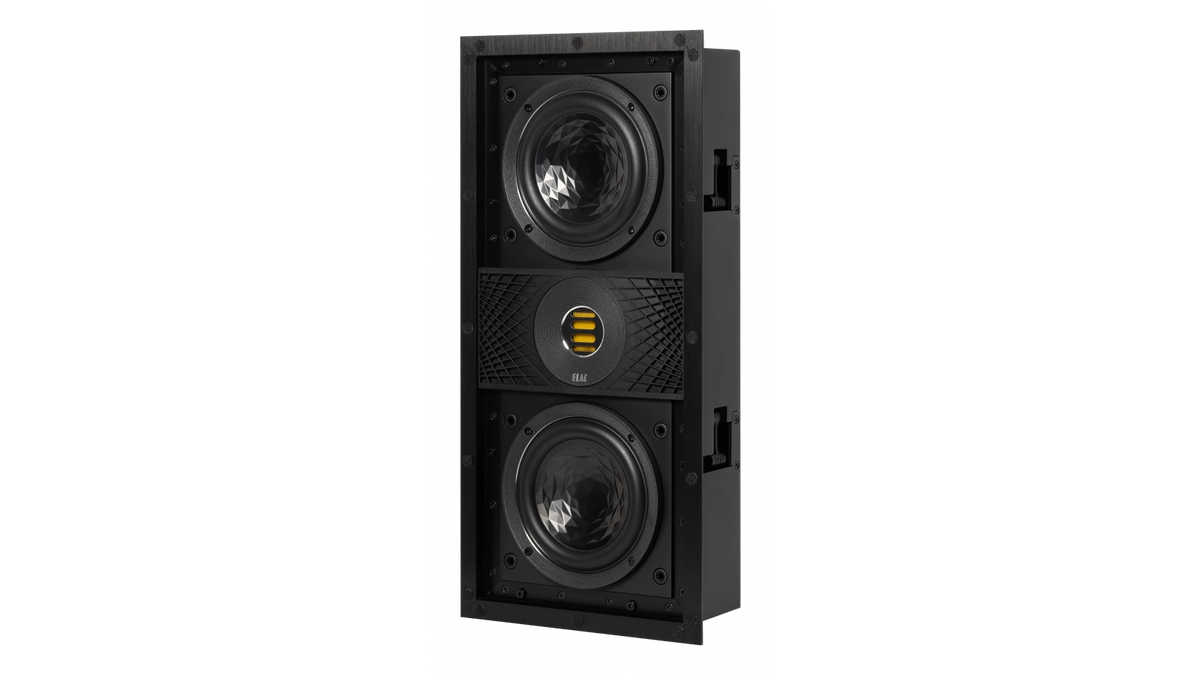

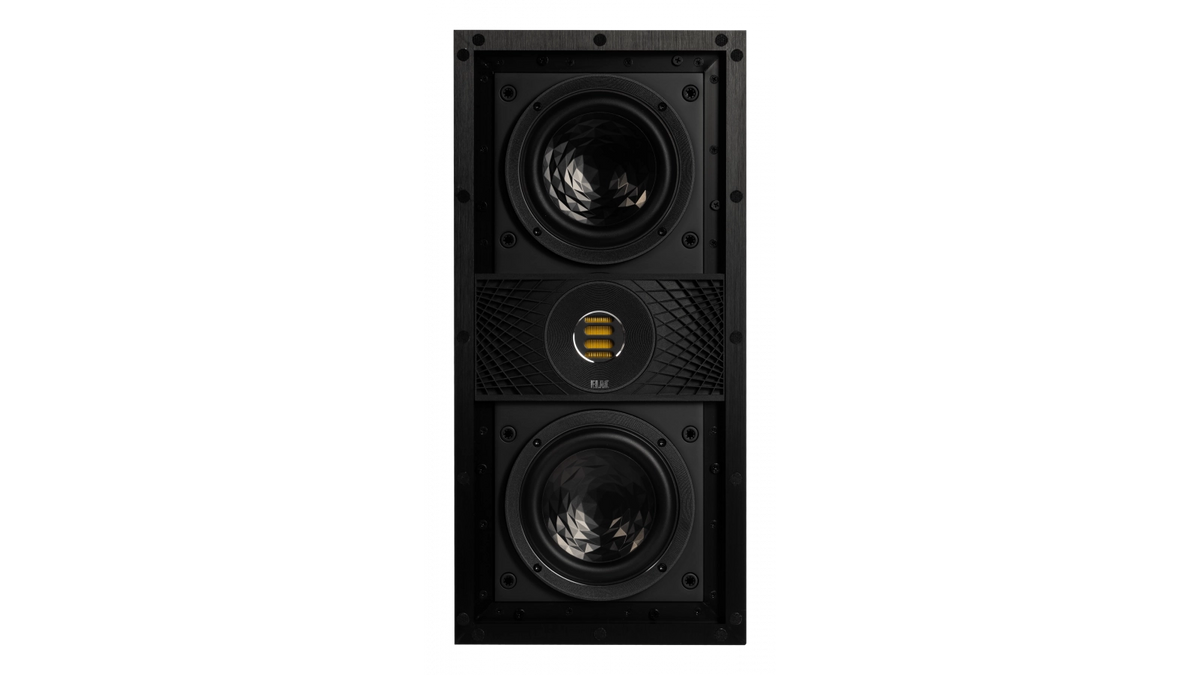

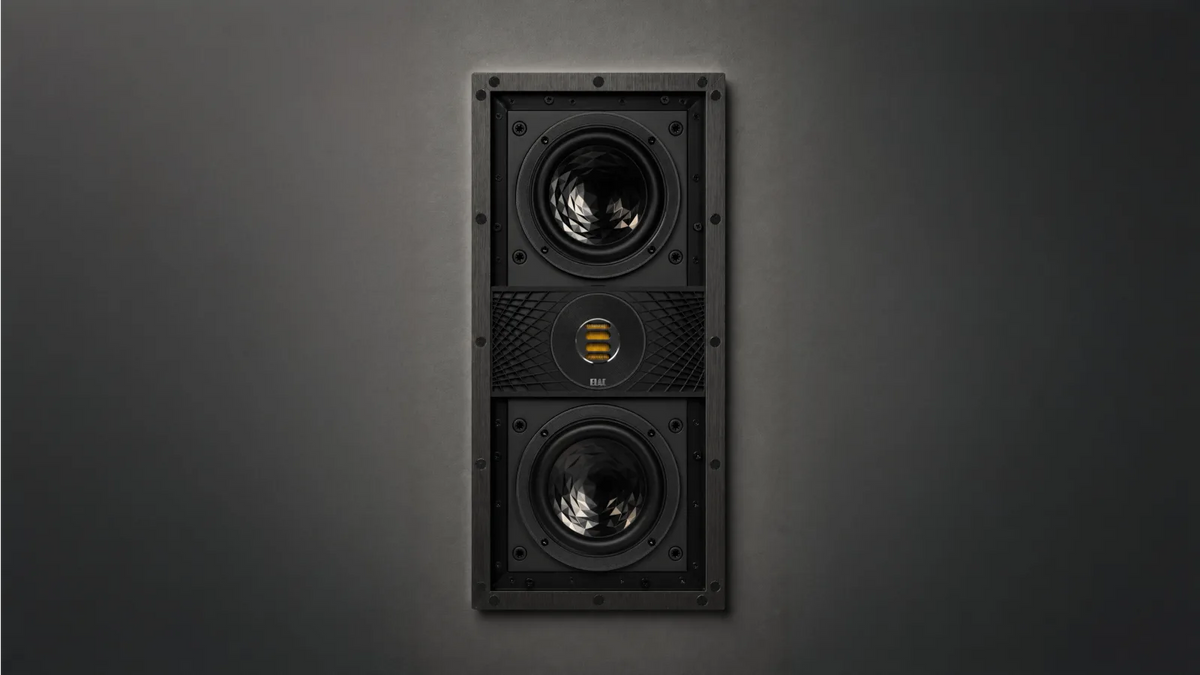

The IW-VJ63S is the smallest sealed in-wall speaker in ELAC's Vertex III series, which combines the look of an architectural speaker with the performance of ELAC's Vela line. It is a 2-way sealed design with ELAC's JET folded ribbon (Air Motion Transformer) tweeter and one 6-inch active and one 6-inch passive Crystal Aluminum Sandwich Cone. Sold each.

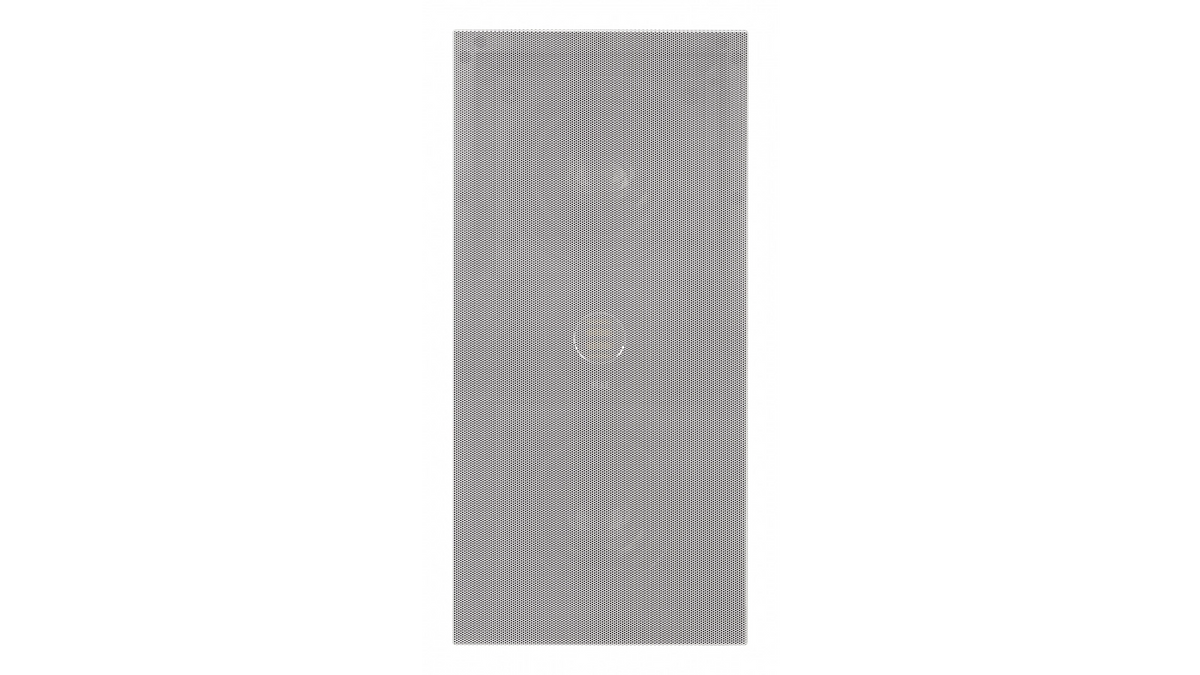

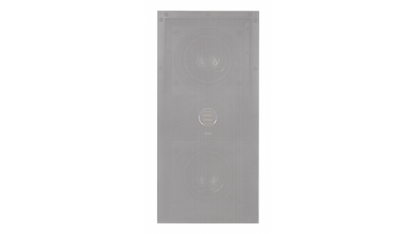

ELAC says its custom aluminum dog legs ensure no vibration once the speaker is mounted in the wall, and a removable painted wood baffle conceals all of the hardware. A paintable magnetic metal grille finishes the front, a cutout template and manual are included, and the Vertex III speakers share the same components across the series so they match sonically.
Speaker type: 2-way, sealed cabinet
Tweeter: Jet Folded Ribbon
Woofers: 1 x 6” Active & 1 x 6” Passive Crystal Aluminum Sandwich Cones
Crossover frequency: 2,400 Hz
Frequency response: 48 to 50,000 Hz
Sensitivity: 86 db at 2.83 v/1m
Recommended amplifier power: 40 to 120 Watts
Nominal/peak power handling: 120/160 Watts
Nominal impedance: 4 Ohm
Finish: Black baffle/White grille
Grille: Metal magnetic / Paintable
Accessories included: Cutout template, manual
Dimensions: H: 20.47 in / 520 mm W: 9.76 in / 248 mm
